Logic Compliance Interposer
Optimal DDR2 validation requires analysis of the DDR2 signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative of the signals on the target. more…
DQ Data Acquisition
This interposer is capable of probing DQ read and write data. The acquisition of DQ read and write data may be limited depending on the analyzer configuration.
Patented Socket Design
Nexus Technology’s patented, high-bandwidth, component interposer sockets greatly simplify the process of attaching the interposer to your target and make for a reusable interposer. Once the custom target socket is installed on the target, the interposer can simply be inserted into the custom target socket or be removed from the socket easily by hand – enabling the interposer to be used on multiple targets or quick swapping of logic analyzer and oscilloscope interposers on the same target.
Installation
Accessing Package on Package
Product Configuration Table
| Nomenclature | Data Width | Component Socket |
|---|---|---|
| NEX-DDR2MP60BLA | x4/x8 | No |
| NEX-DDR2MP60BLASK | x4/x8 | Yes |
Available Accessories
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Socket | Standard Memory Socket | 1 | NEX-SOCKETDDR260 |
| Custom Socket | Custom Target Socket | 1 | NEX-DDR260BGASKBA |
| Custom Socket | Custom Target Socket | 3 | NEX-DDR260BGASKBA-3 |
| Solder Balls | Install solder balls on standard memory socket | 1 | NEX-OPT-SOLDERBALLS-SK |
| Probe | Passive Probe to connect to Logic Analyzer or Memory Analyzer | 1 | NEX-PRB1XL |

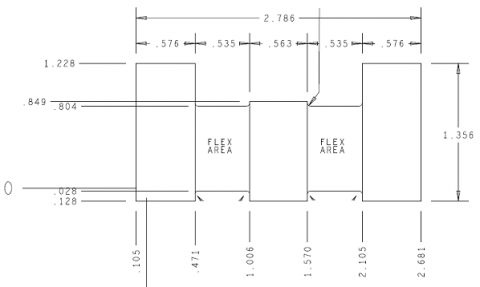

Mechanical Outline
Attachment Service
Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.
