Logic Interposer

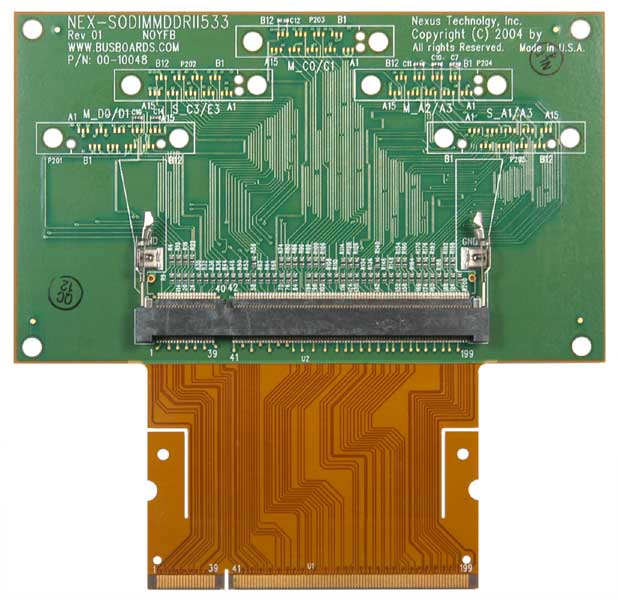

Nexus Technology recommends DDR2 slot interposers for applications where the customer must have the greatest flexibility for probing of different DDR2 SODIMMs. This interposer is an extender design and does not require a dedicated DIMM slot. The logic analyzer connects above the standard SODIMM height so that there is no mechanical interference with adjacent SODIMMs. This is a passive interposer with no added buffers to conceal system performance.. more…
Product Configuration Table
| Nomenclature | Form Factor | Pin Count | Includes |
|---|---|---|---|
| NEX-SODIMMDDRII533 | SODIMM | 200 | 1 – DDR2 200 pin SODIMM Interposer 1 – TLA Setup software package |
| NEX-SODIMMDDRII400 | SODIMM | 200 | 1 – DDR2 200 pin SODIMM Interposer 1 – TLA Setup software package |
