Logic Compliance Interposer

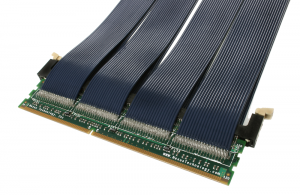

Nexus Technology recommends DDR3 slot interposers for applications where the customer must have the greatest flexibility for probing of different DDR3 DIMMs. This interposer is an extender design and does not require a dedicated DIMM slot. The logic analyzer connects above the standard DIMM height so that there is no mechanical interference with adjacent DIMMs. This is a passive interposer with no added buffers to conceal system performance.. more…
Product Configuration Table
| Nomenclature | Form Factor | Pin Count | Includes |
|---|---|---|---|
| NEX-DDR3INTR-THIN-PR | DIMM | 240 | 1 – DDR3 240 DIMM Interposer 1 – TLA Setup software package 1 – NEX-PRB1X-T Probe 3 – NEX-PRB2X-T Probes |
| NEX-DDR3INTR-THIN-PR2 | DIMM | 240 | 1 – DDR3 240 DIMM Interposer 1 – TLA Setup software package 4 – NEX-PRB1X-T Probe |
