EdgeProbe™ Technology
Nexus’ patented EdgeProbe™ designs require a small mechanical footprint by designing the probe points on the edge of the interposer. They are attached directly to the target. Read more…
Software
Oscilloscope de-embedding software filters/removes interposer effects. Please contact Nexus for the appropriate de-embedding software for your interposer.
Product Configuration Table
| Nomenclature | Data Width | Interposer Type |
|---|---|---|
| NEX-DDR3MCI78SCDSA | x4/x8 | Address |
| NEX-DDR3MCI78SCDSD | x4/x8 | Data |
If your application requires access to all signals probed and there is sufficient mechanical clearance, please view our DDR3 78 Ball Oscilloscope Component Interposers.
Available Accessories
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Riser | Riser elevates interposer .050″ | 1 | NEX-RSRDDR378 |
| Socket | Memory socket | 1 | NEX-SOCKETDDR378 |
| Solder Balls | Install solder balls on interposer | 1 | NEX-OPT-SOLDERBALLS-EP |
| Solder Balls | Install solder balls on socket | 1 | NEX-OPT-SOLDERBALLS-SK |
Attachment Service
Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.

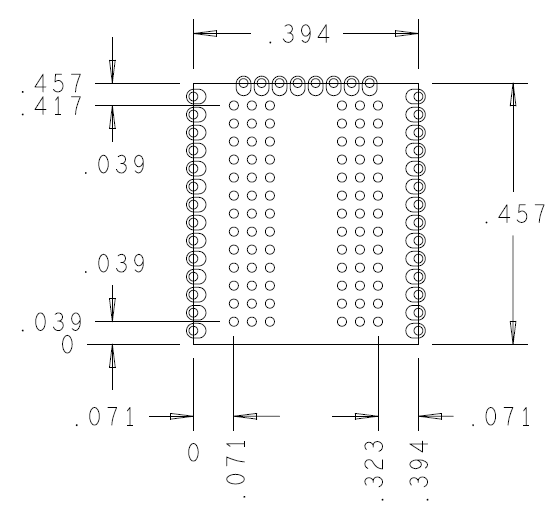

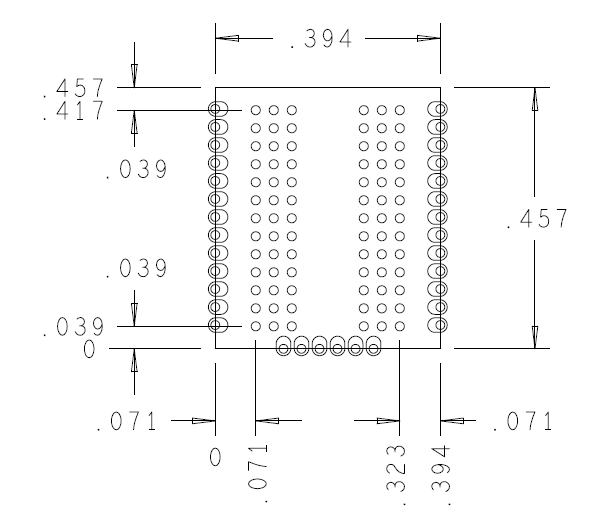

Mechanical Outline
