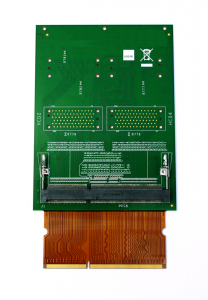

Logic Compliance Interposer
Nexus Technology recommends DDR3 slot interposers for applications where the customer must have the greatest flexibility for probing of different DDR3 SODIMMs. This interposer is an extender design and does not require a dedicated SODIMM slot. The logic analyzer connects above the standard SODIMM height so that there is no mechanical interference with adjacent SODIMMs. This is a passive interposer with no added buffers to conceal system performance.. more…
Product Configuration Table
| Nomenclature | Form Factor | Pin Count | Includes |
|---|---|---|---|
| NEX-SODDR3INTR-HS | DIMM | 204 | 1 – DDR3 204 Pin SODIMM Interposer 1 – TLA Setup software package |
| NEX-SODDR3INTR-XL | DIMM | 204 | 1 – DDR3 204 Pin SODIMM Interposer Compatible with MA4100 Series Memory Analyzer 1 – TLA Setup software package |
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Probe | Passive Probe to connect to Logic Analyzer or Memory Analyzer | 1 | NEX-PRB1XL |
| Memory Analyzer | Nexus Technology MA4100 Series Memory Analyzer | 1 | NEX-MA4100-DDR3 |
Compatible Memory Analyzers
| Product | Details |
|---|---|
 MA4100 Series Memory Analyzer |
Memory analyzer supporting DDR4 and DDR3 performance, margins and capture up to DDR4-3200 (1.6GHz) and DDR3-2667 (1.6GT/s capable) with 1G-Sample acquisition depth, ClockSafe™ and Sixteen Smart Frequency Analysis. |
