Compliance Interposer
Compliance analysis performed after or alongside electrical (analog) analysis and consists of: logic (command transfer) verification and timing margin analysis to JEDEC timing specifications. This ensures your target is compliant with JEDEC specification timing requirements and must be done in real time or violations can be missed…. more…
Product Configuration Table
| Nomenclature | Form Factor | Pin Count | Includes |
|---|---|---|---|

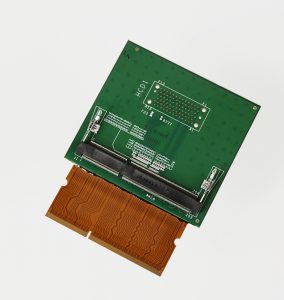

| NEX-SODDR3INTR-P | SODIMM | 204 | 1 – DDR3 204 Pin SODIMM Interposer 1 – TLA Setup software package |
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Probe | Passive Probe to connect to Logic Analyzer or Memory Analyzer | 1 | NEX-PRB1XL |
| Memory Analyzer | Nexus Technology MA4100 Series Memory Analyzer | 1 | NEX-MA4100-DDR3 |
Compatible Memory Analyzers
| Product | Details |
|---|---|
 MA4100 Series Memory Analyzer |
Memory analyzer supporting DDR4 and DDR3 performance, margins and capture up to DDR4-3200 (1.6GHz) and DDR3-2667 (1.6GT/s capable) with 1G-Sample acquisition depth, ClockSafe™ and Sixteen Smart Frequency Analysis. |
