Optimal DDR4 validation requires analysis of the DDR4 signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative, contain little interference, and present the maximum possible data eye size.

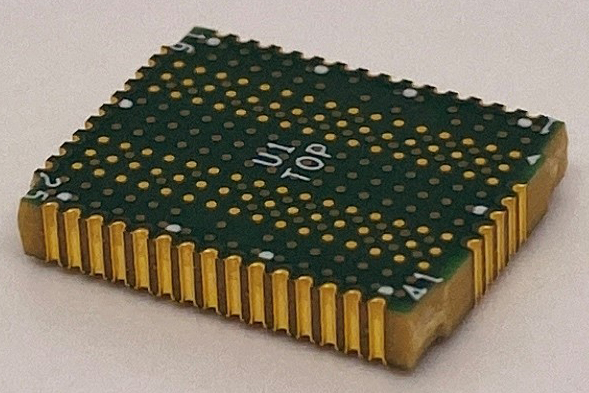

XH Series EdgeProbeTM
These XH Series interposers include our patented EdgeProbeTM technology, enabling measurements of the highest DDR4 data rates – more than 3.2GT/s (DDR4-3200) – while allowing the interposer to be virtually the same size as the memory component.
- XH Series: New Design for Emerging and Leading-Edge Computer Memories
- EdgeProbeTM: Interposer fits in any application
Software
Oscilloscope de-embedding software filters/removes interposer effects. Please contact Nexus for the appropriate de-embedding software for your interposer.
Product Configuration Table
| Nomenclature | Data Width | Interposer Type |
|---|---|---|
| NEX-DDR4MCI96XHEPSA | x16 | Address Narrow |
| NEX-DDR4MCI96XHEPWA | x16 | Address Wide |
| NEX-DDR4MCI96XHEPSD | x16 | Data – Narrow |
| NEX-DDR4MCI96XHEPWD | x16 | Data – Wide |
Available Accessories
| Type | Desc. | Nomenclature |
|---|---|---|
| Riser | Riser elevates interposer .050″ | NEX-RSRDDR496 |
| Socket | Memory Socket | NEX-SOCKETDDR496 |
Attachment Service
Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.

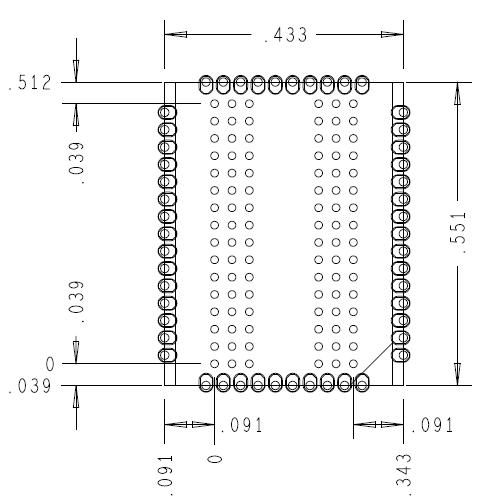

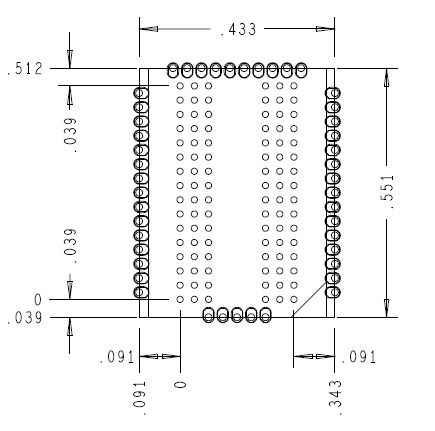

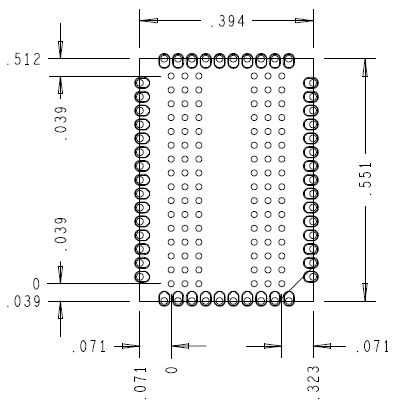

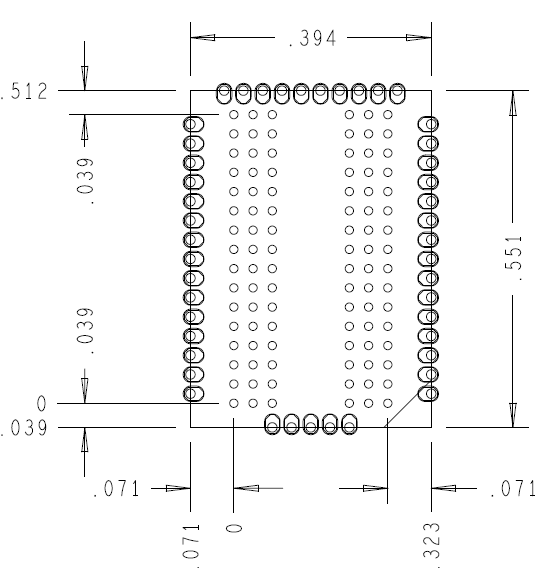

Mechanical Outlines
