Mixed Signal Oscilloscope Interposer

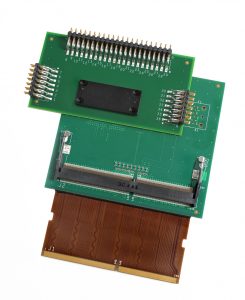

A Mixed Signal Oscilloscope (MSO) is a unique combination of an oscilloscope and digital channels similar to those found on a Logic Analyzer. The digital channels provide the ability to look at a wide bus such as a Memory, Address, or Command bus and trigger on specific commands or addresses. Once triggered, the digital channels are correlated with the oscilloscope channels providing high speed oscilloscope data acquired at the Command/Address trigger point. The DDR4 MSO DIMM Interposer provides a quick and easy interface between the MSO digital channels and a DDR4 SODIMM slot. The intended use of this interposer is to provide DDR4 bus visibility and DDR4 bus triggering of the DDR4 Address/Command bus.
Product Configuration Table
| Nomenclature | Form Factor | Pin Count | Includes |
|---|---|---|---|
| NEX-SODDR4INTR-MSO | DIMM | 256 | 1 – DDR4 256 SODIMM Interposer |
| NEX-SO4INTR260-MSO | SODIMM | 260 | 1 – DDR4 260 SODIMM Interposer |
Add Analog Analysis
You will need a component interposer to enable analog analysis using the oscilloscope channels of the MSO.
| Interposers | ||
|---|---|---|
| Oscilloscope | ||
| Package | EdgeProbe™ | Socketed |
| 78 Ball x4/x8 | ✓ | ✓ |
| 96 Ball x16 | ✓ | ✓ |
