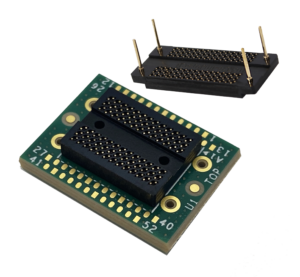

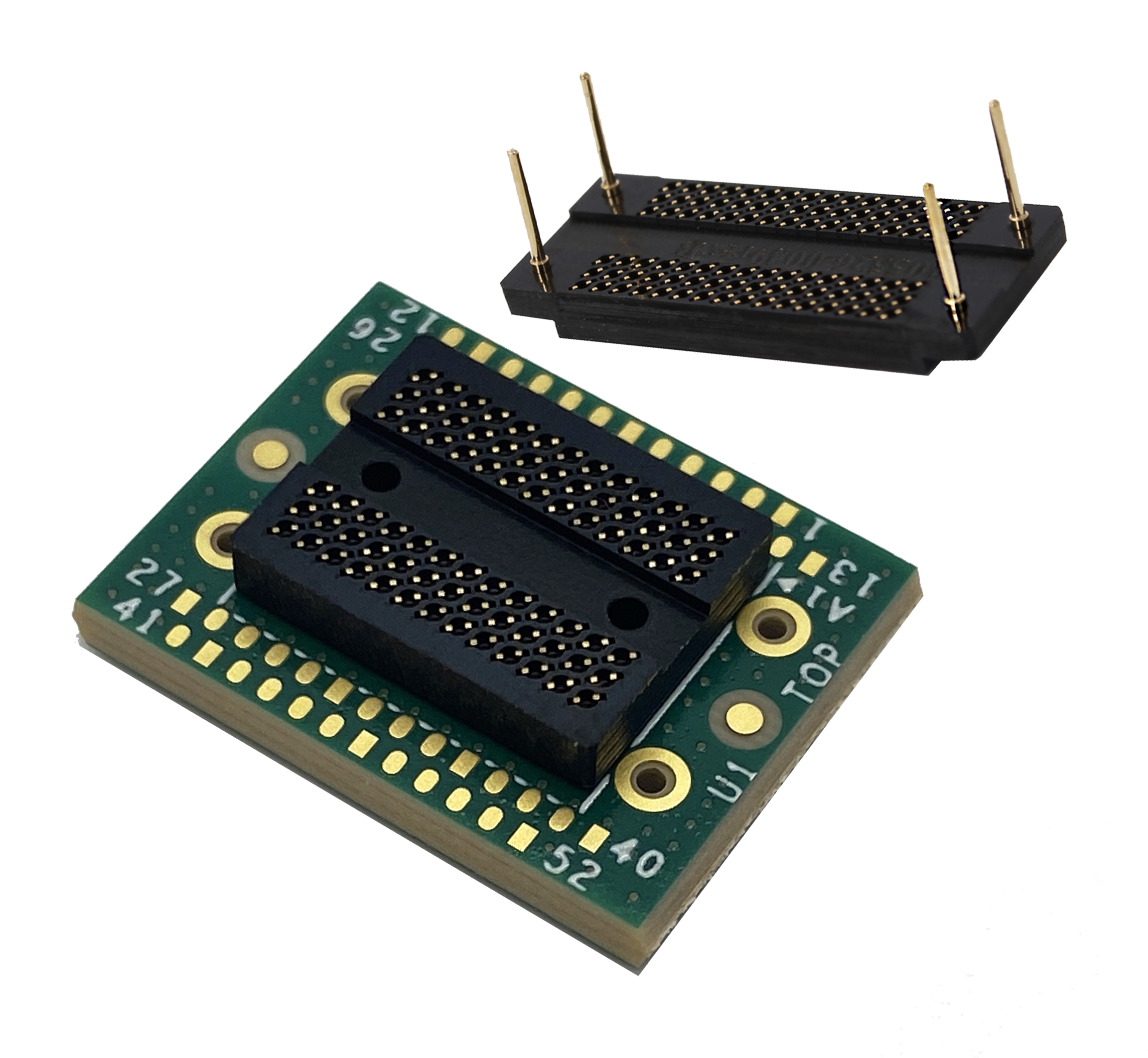

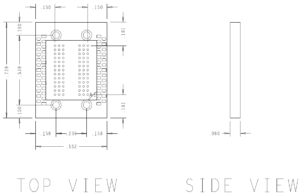

DDR5 x4/x8 XH Series Oscilloscope Target Socketed Interposer

Premier Component Interposer Design

Optimal DDR5 validation requires analysis of the DDR5 signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative, contain little interference, and present the maximum possible data eye size. Nexus Technology component interposers allow for any oscilloscope to be used for probing DDR5 signals extremely close to the memory components.

Support for DDR5 x4/x8 78/82 ball Memory Components.

XH Series Interposers

XH Series: New Design for Emerging and Leading-Edge Computer Memories

Patented Socket Design

Nexus Technology’s patented, high-bandwidth, component interposer sockets greatly simplify the process of attaching the interposer to your target and make for a reusable interposer. Once the custom target socket is installed on the target, the interposer can simply be inserted into the custom target socket or be removed from the socket easily by hand – enabling the interposer to be used on multiple targets or quick swapping of logic analyzer and oscilloscope interposers on the same target.

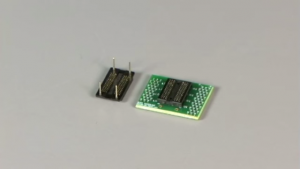

Watch Video on
Accessing Package on Package

Simulation & De-Embedding

S-Parameters are included for target simulation and the creation of de-embedding filters for use with an oscilloscope.

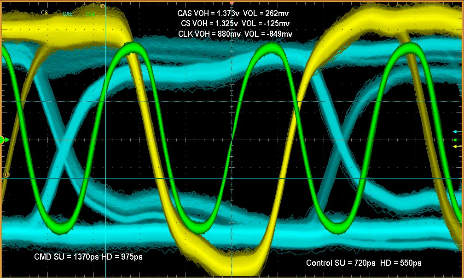

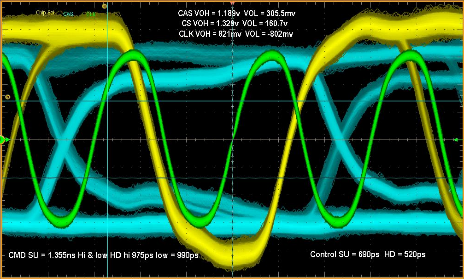

Can you see the difference in these oscilloscope traces?


Same signals…Which one has the Nexus Interposer? Click to see if you are right

Product Configuration Table

Nomenclature	Target Socket	Component Socket	Alt. Nomenclature
DDR5-A-CTS-78-T	Yes	No	NEX-DDR5MP78XHBSC
DDR5-A-CTS-78-Ca.T	Yes	Yes, Attached	NEX-DDR5MP78XHBSCSK

Available Accessories

Nomenclature	Type	Alt. Nomenclature

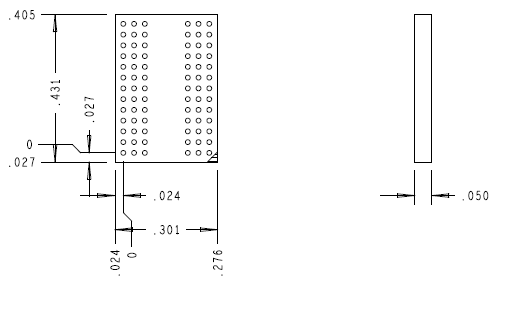

DDR5-RSR-78	Riser	NEX-RSRDDR578

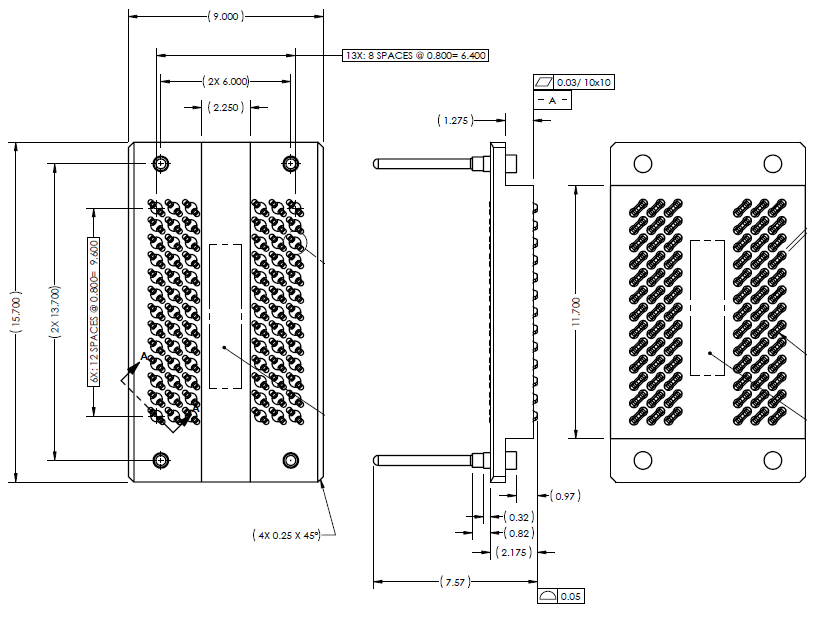

DDR5-TSK-78	Target Socket	NEX-DDR578BGASKBA

Attachment Service

Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.
