Optimal DDR5 validation requires analysis of the DDR5 signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative, contain little interference, and present the maximum possible data eye size.
Support for DDR5 x4/x8 78/82 ball Memory Components.

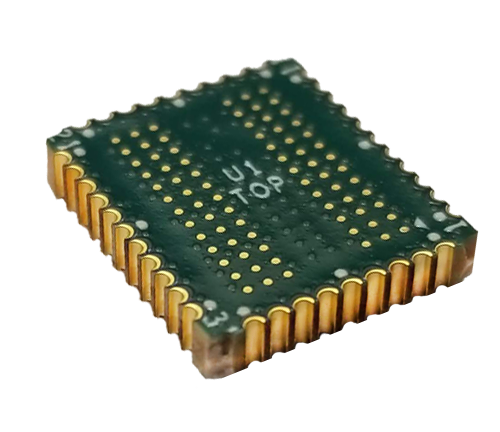

XH Series EdgeProbeTM
These XH Series interposers include our patented EdgeProbeTM technology, enabling measurements of the highest DDR5 data rates while allowing the interposer to be virtually the same size as the memory component.
- XH Series: New Design for Emerging and Leading-Edge Computer Memories
- EdgeProbeTM: Interposer fits in any application
Simulation & De-Embedding
S-Parameters are included for target simulation and the creation of de-embedding filters for use with an oscilloscope.
Product Configuration Table
| Nomenclature | Data Width | Interposer Type |
|---|---|---|
| NEX-DDR5MCI78XHEPTA | x4/x8 | Address |
| NEX-DDR5MCI78XHEPTD | x4/x8 | Data |
Available Accessories
| Type | Desc. | Nomenclature |
|---|---|---|
| Riser | Riser elevates interposer .050″ | NEX-RSRDDR578 |
Attachment Service
Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.
Mechanical Outlines

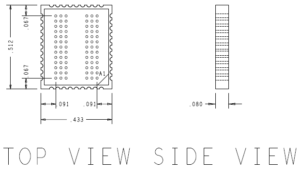

Tall Data
NEX-DDR5MCI78XHEPTD

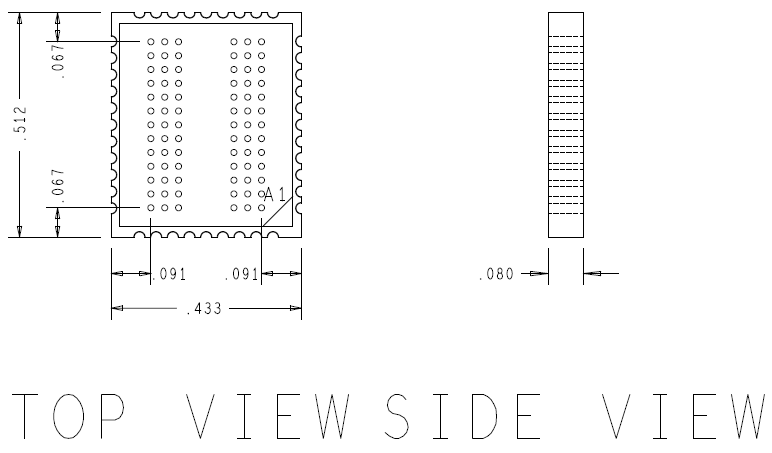

Tall Address
NEX-DDR5MCI78XHEPTA
NEX-RSRDDR578
