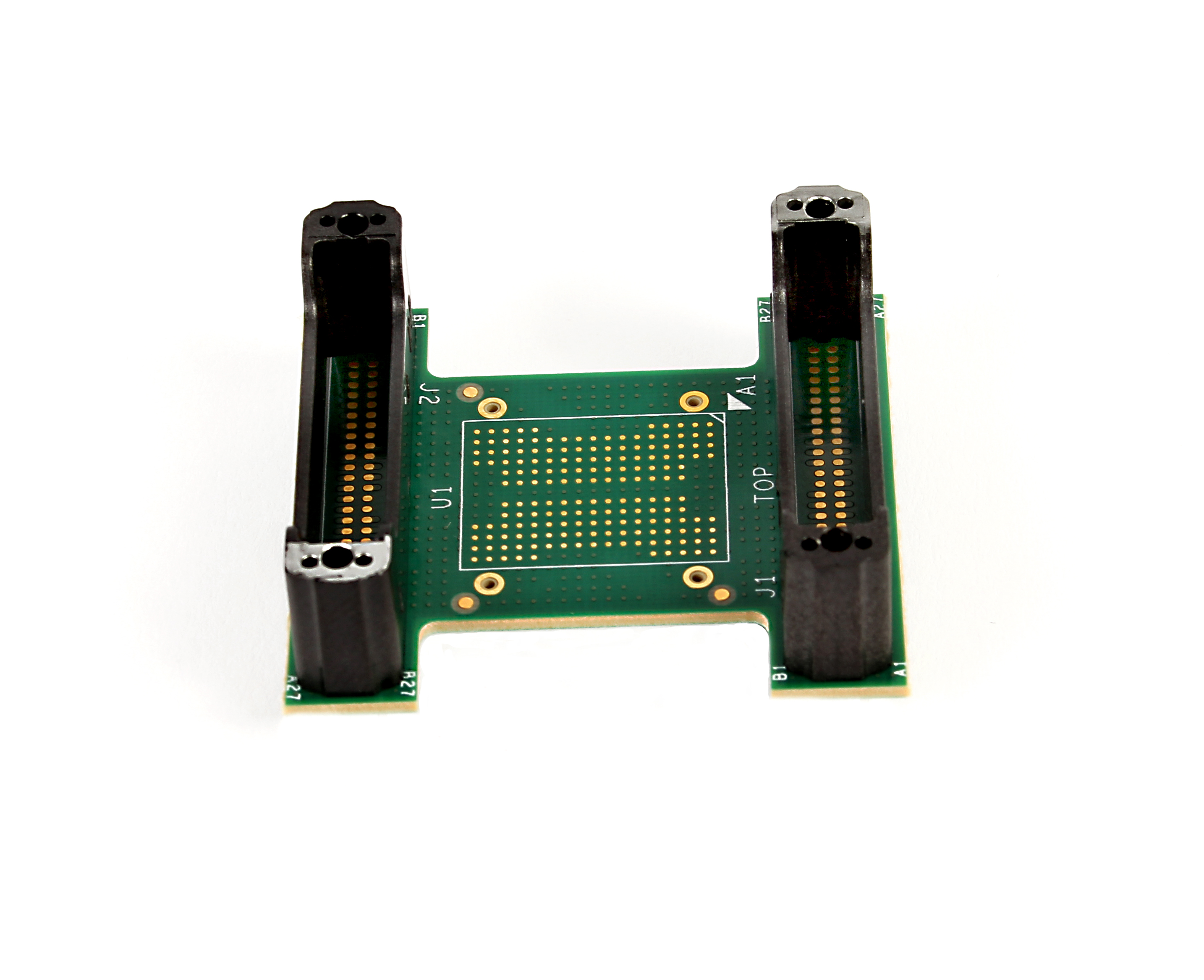

NAND 132 Ball Logic Compliance Interposer

Logic/Compliance Interposer

Optimal Logic/Compliance validation requires analysis of the signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative of the signals on the target. more…

Patented Socket Design

Nexus Technology’s patented, high-bandwidth, component interposer sockets greatly simplify the process of attaching the interposer to your target and make for a reusable interposer. Once the custom target socket is installed on the target, the interposer can simply be inserted into the custom target socket or be removed from the socket easily by hand – enabling the interposer to be used on multiple targets or quick swapping of logic analyzer and oscilloscope interposers on the same target.

Watch Video on
Accessing Package on Package

Product Configuration Table

Nomenclature	Description	Component Socket
NEX-NAND132CA2	2 Channel ONFi 132 ball NAND Flash Logic Analyzer memory interposer with solderballs only (no memory socket).	No
NEX-NAND132CA2-SK	2 Channel ONFi 132 ball NAND Flash Logic Analyzer memory interposer with solderballs and memory socket installed.	Yes

*Single channel support is also available. Please contact us for more information.

Available Accessories

Type	Desc.	Quantity	Nomenclature
Riser	Riser elevates interposer .050″	1	NEX-RSRNAND132
Socket	Memory socket	1	NEX-SOCKETNAND132
Solder Balls	Install solder balls on socket	1	NEX-OPT-SOLDERBALLS-SK

Attachment Service

Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.

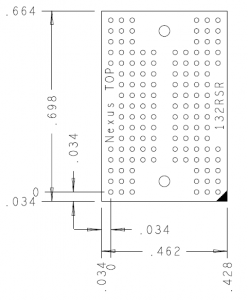

Mechanical Outline

Compatible Memory Analyzers

Product	Details
MA5100 Series Memory Analyzer	Memory analyzer supporting LPDDR4 and LPDDR3 performance, margins and capture up to LPDDR4-4267 (2.4GHz) and LPDDR3-2133 (2.4GT/s capable) with 1G-Sample acquisition depth, ClockSafe™ and Sixteen Smart Frequency Analysis.
