NAND 152 Ball Oscilloscope Socketed Interposer

Premier Component Interposer Design

Optimal Flash validation requires analysis of the Flash signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative, contain little interference, and present the maximum possible data eye size. Nexus Technology component interposers allow for any oscilloscope to be used for probing Flash signals extremely close to the memory components.

Patented Socket Design

Nexus Technology’s patented, high-bandwidth, component interposer sockets greatly simplify the process of attaching the interposer to your target and make for a reusable interposer. Once the custom target socket is installed on the target, the interposer can simply be inserted into the custom target socket or be removed from the socket easily by hand – enabling the interposer to be used on multiple targets or quick swapping of logic analyzer and oscilloscope interposers on the same target.

Simulation & De-embedding

Oscilloscope de-embedding software filters/removes interposer effects. S-Parameter files for simulation and de-embedding filter file creation are included with all oscilloscope interposers.

Can you see the difference in these oscilloscope traces?

Same signals…Which one has the Nexus Interposer? Click to see if you are right

Product Configuration Table

Nomenclature	Package Size	Component Socket
NEX-NAND152BSC	152 Ball	No
NEX-NAND152BSCSK	152 Ball	yes

Available Accessories

Type	Desc.	Quantity	Nomenclature
Riser	Riser elevates interposer .050″	1	NEX-RSRNAND152

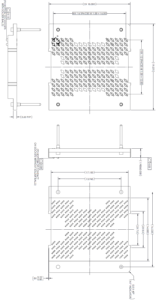

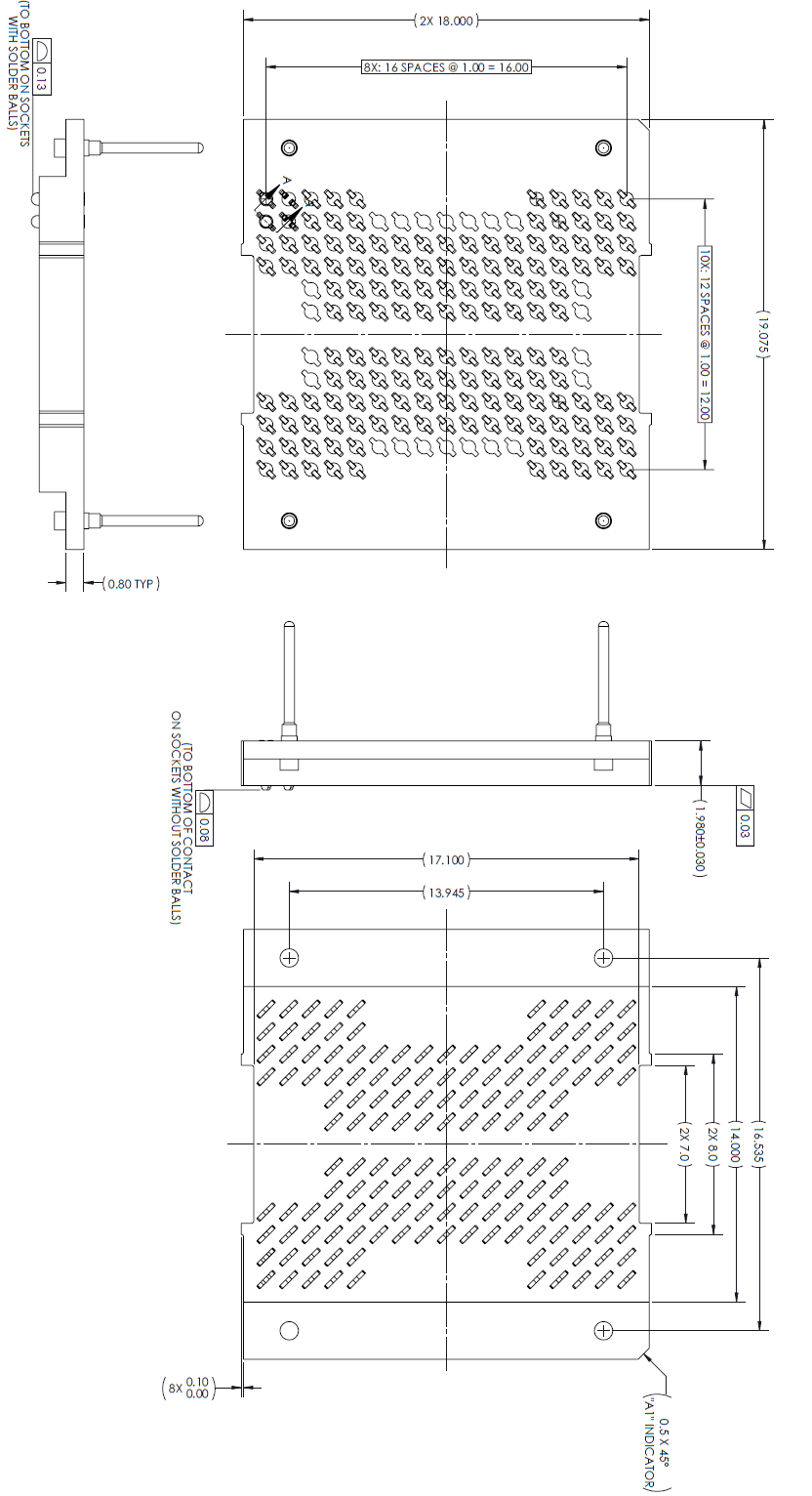

Custom Socket	Custom Target Socket	1	NEX-NAND152BGASKBA
Custom Socket	Custom Target Socket	3	NEX-NAND152BGASKBA-3
Solder Balls	Install solder balls on standard memory socket	1	NEX-OPT-SOLDERBALLS-SK

Attachment Service

Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.

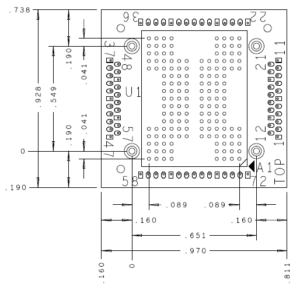

Mechanical Outline
