Premier Component Interposer Design
Optimal NAND Flash validation requires analysis of the NAND Flash signals as seen by the Flash components. This allows for the highest confidence that the signals captured are representative, contain little interference, and present the maximum possible data eye size. Nexus Technology’s component interposers allow for any oscilloscope to be used for probing Flash signals extremely close to the Flash components.

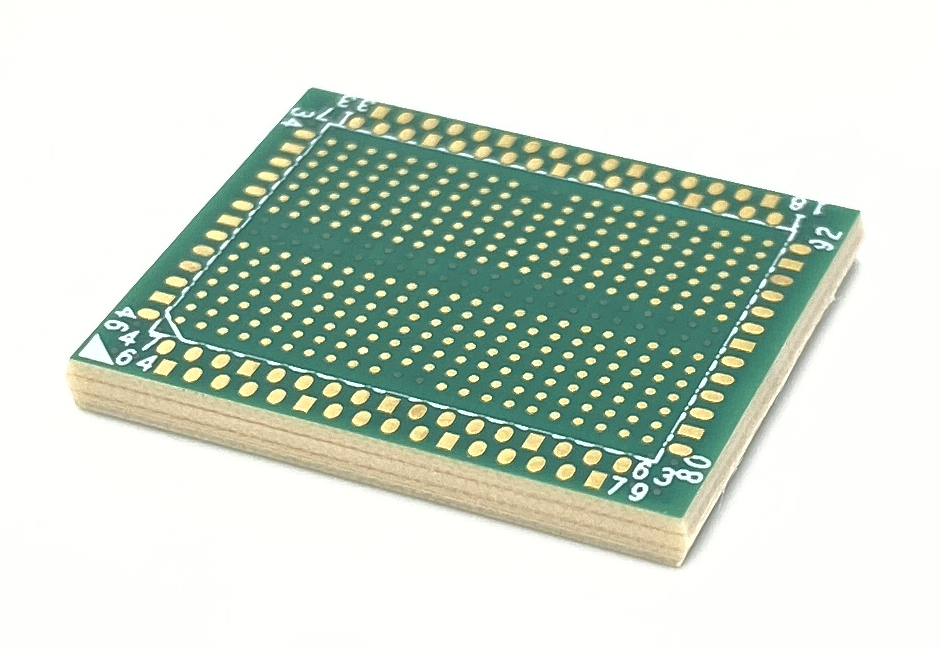

XH Series Interposers
- XH Series: New Design for Emerging and Leading-Edge Computer Memories
Simulation & De-Embedding
S-Parameters are included for target simulation and the creation of de-embedding filters for use with an oscilloscope.
Product Configuration Table
| Nomenclature | Package Size | Interposer Type | Quantity |
|---|---|---|---|
| NEX-NAND304XHSCDS | 304 Ball | Direct Attach Oscilloscope | 1 |
Available Accessories
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Riser | Riser elevates interposer .050″ | 1 | NEX-RSRNAND304 |
Attachment Service
Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.

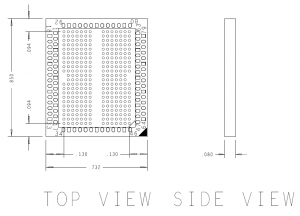

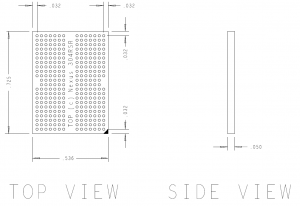

Mechanical Outline
