Premier Component Interposer Design

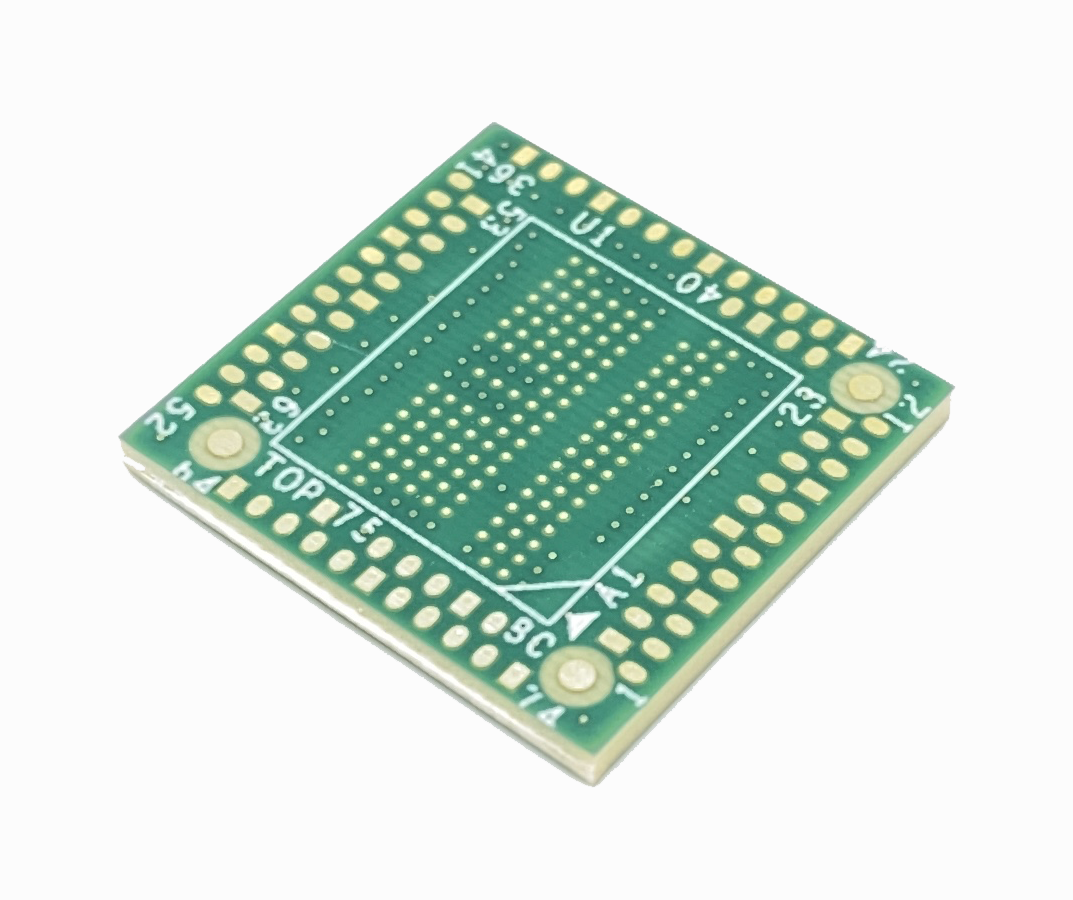

Optimal LPDDR2 validation requires analysis of the LPDDR2 signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative, contain little interference, and present the maximum possible data eye size. Nexus Technology component interposers allow for any oscilloscope to be used for probing LPDDR2 signals extremely close to the memory components.
Software
Oscilloscope de-embedding software filters/removes interposer effects. Please contact Nexus for the appropriate de-embedding software for your interposer.
Product Configuration Table
| Nomenclature | Data Width | Interposer Type | Quantity |
|---|---|---|---|
| NEX-LP2MCI134SCDS | x16/x32 | Direct Attach Oscilloscope | 1 |
Available Accessories
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Riser | Riser elevates interposer .050″1 | 1 | NEX-RSRLPDDR2134 |
| Socket | Memory socket | 1 | NEX-SOCKETLPDDR2134 |
| Solder Balls | Install solder balls on interposer | 1 | NEX-OPT-SOLDERBALLS-DA |
| Solder Balls | Install solder balls on socket | 1 | NEX-OPT-SOLDERBALLS-SK |
1P/N NEX-RSRLPDDR2134 includes solderballs.
Attachment Service
Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.

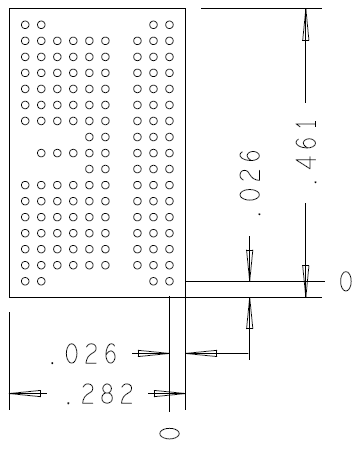

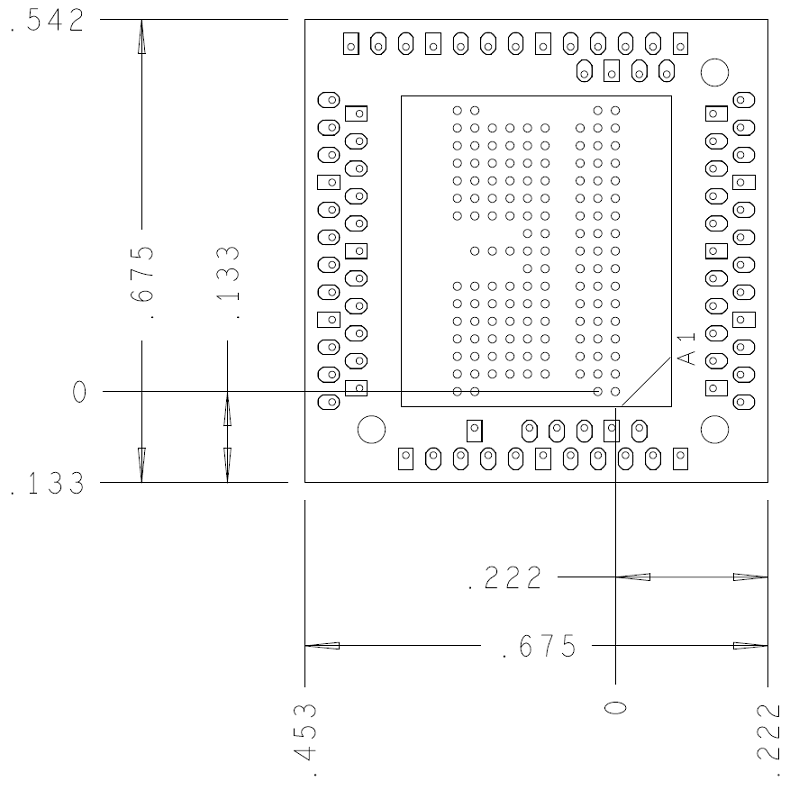

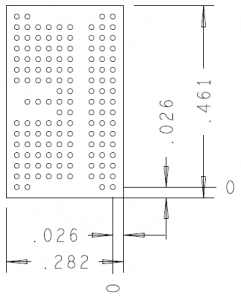

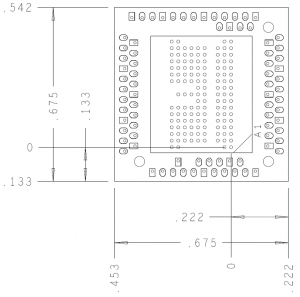

Mechanical Outline
