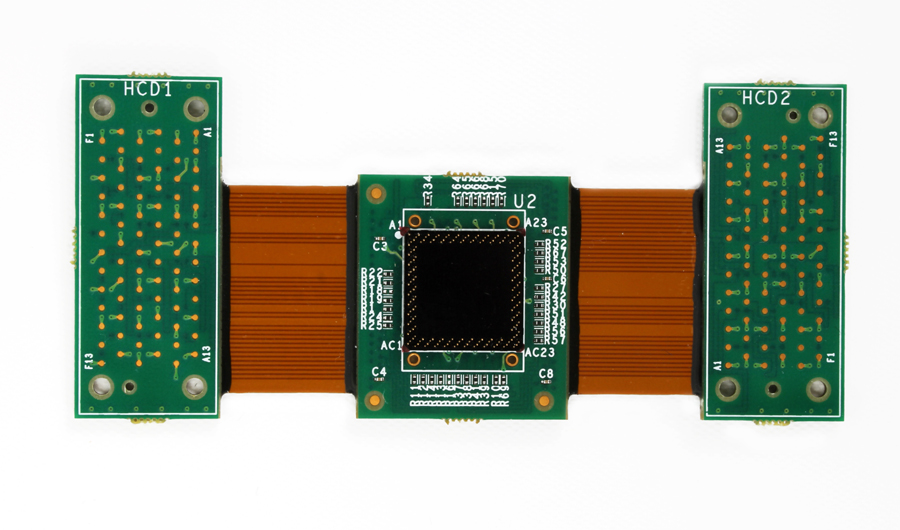

Logic Interposer
Optimal LPDDR2 validation requires analysis of the LPDDR2 signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative of the signals on the target. Nexus Technology’s Logic Analyzer component interposers allow for Logic Analysis of the LPDDR2 signals extremely close to the memory component’s more…
Product Configuration Table
| Nomenclature | Data Width |
|---|---|
| NEX-LP2PoP168BLA | x32 |
| NEX-LP2PoP168BLASK | x32 |
Available Accessories
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Riser | Riser elevates interposer .050″ | 1 | NEX-RSRLPDDR2168 |
| Solder Balls | Install solder balls on riser | 1 | NEX-OPT-SOLDERBALLS-RSR |
Mechanical Outline
Attachment Service
Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.
