Compliance Interposer

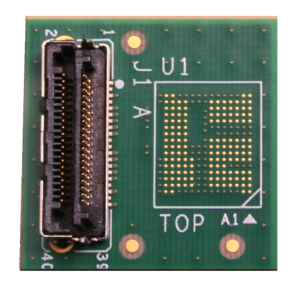

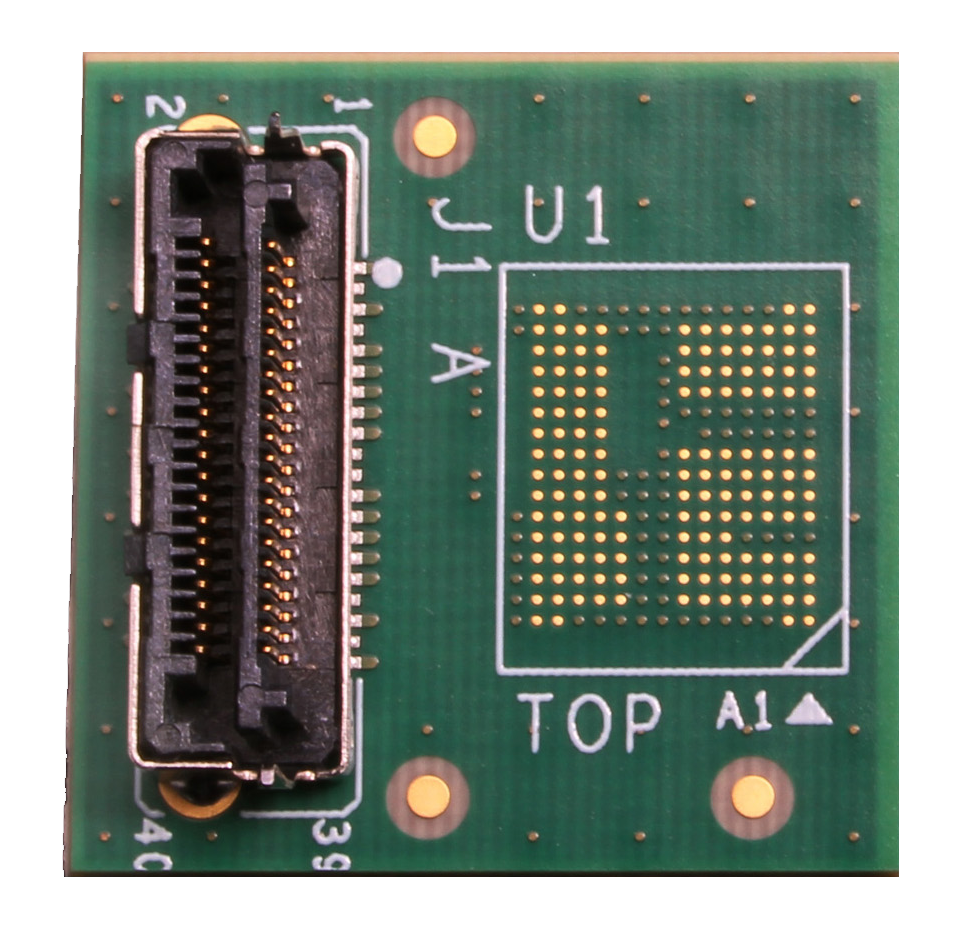

Optimal LPDDR4 validation requires analysis of the LPDDR4 signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative of the signals on the target. Nexus Technology Memory Compliance Analyzer component interposers allow for Compliance Analysis of the LPDDR4 signals extremely close to the memory component’s… more…
Product Configuration Table
| Nomenclature | Data Width | Interposer Type | Quantity |
|---|---|---|---|
| NEX-LP4MCI149CA | 2 x16 | Direct Attach | 1 |
| NEX-LP4MCI149CA-SK | 2 x16 | Direct Attach/Socketed | 1 |
Available Accessories
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Riser | Riser elevates interposer .050″ | 1 | NEX-RSRLPDDR4149 |
| Socket | Memory socket | 1 | NEX-SOCKETLPDDR4149 |
| Solder Balls | Install solder balls on riser | 1 | NEX-OPT-SOLDERBALLS-RSR |
| Solder Balls | Install solder balls on socket | 1 | NEX-OPT-SOLDERBALLS-SK |
Mechanical Outline

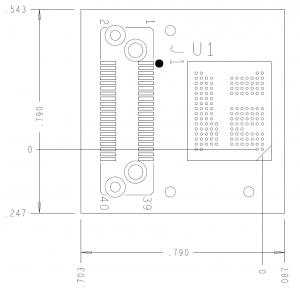

NEX-LP4MCI149CA

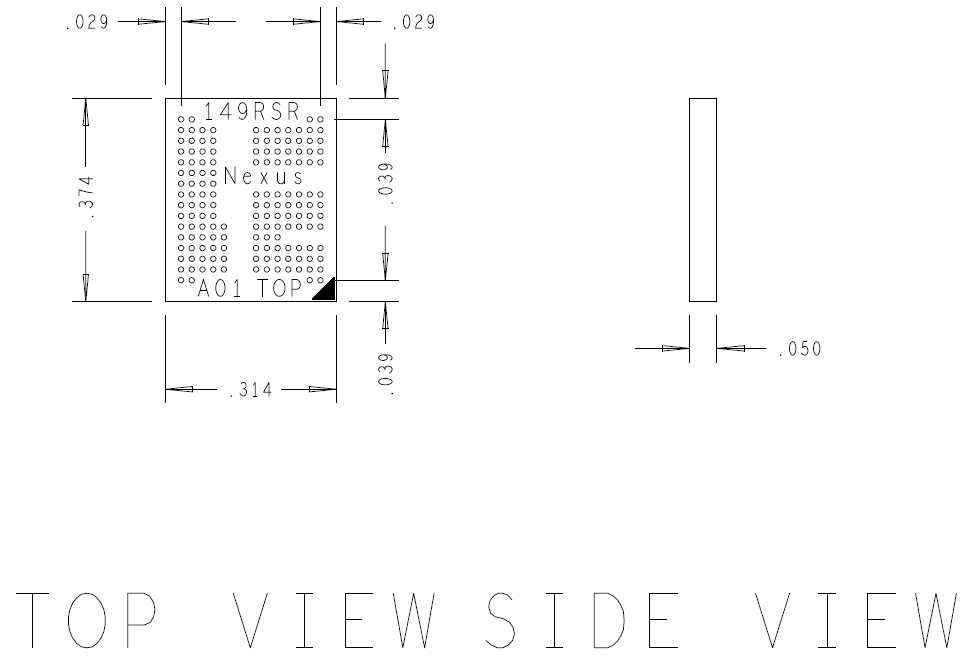

NEX-RSRLPDDR4149
Compatible Memory Analyzers
| Product | Details |
|---|---|
 MA5100 Series Memory Analyzer |
