LPDDR4 200 Ball XH Series EdgeProbe Interposers

Optimal LPDDR4 validation requires analysis of the LPDDR4 signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative, contain little interference, and present the maximum possible data eye size.

XH Series EdgeProbe^TM

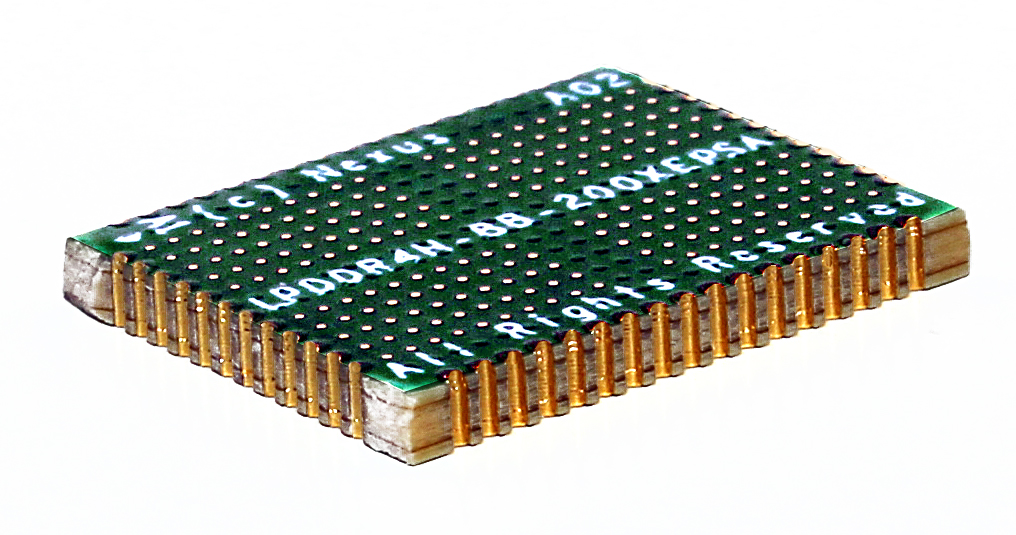

These XH Series interposers include our patented EdgeProbe^TM technology, enabling measurements of the highest LPDDR4 data rates – more than 4.2GT/s (LPDDR4-4266) – while allowing the interposer to be virtually the same size as the memory component.

• XH Series: New Design for Emerging and Leading-Edge Computer Memories
• EdgeProbe^TM: Interposer fits in any application

Software

Oscilloscope de-embedding software filters/removes interposer effects. Please contact Nexus for the appropriate de-embedding software for your interposer.

Product Configuration Table

Nomenclature	Description	Alt. Order Number
LP4-A-CED-200-A	LPDDR4 200-ball Address EdgeProbeTM Interposer, balled	NEX-LP4MCI200XHEPSA
LP4-A-CED-200-DA	LPDDR4 200-ball Data – Channel A EdgeProbeTM Interposer, balled	NEX-LP4MCI200XHEPSDA
LP4-A-CED-200-DB	LPDDR4 200-ball Data – Channel B EdgeProbeTM Interposer, balled	NEX-LP4MCI200XHEPSDB
LP4-RSR-200	LPDDR4 200-ball Riser, balled	NEX-RSRLPDDR4200

Attachment Service

Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.

Mechanical Outlines
