Premier Component Interposer Design
Optimal LPDDR4 validation requires analysis of the LPDDR4 signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative of the actual signal on your target. Nexus Technology component interposers allow for any oscilloscope to be used for probing LPDDR4 signals extremely close to the memory components.

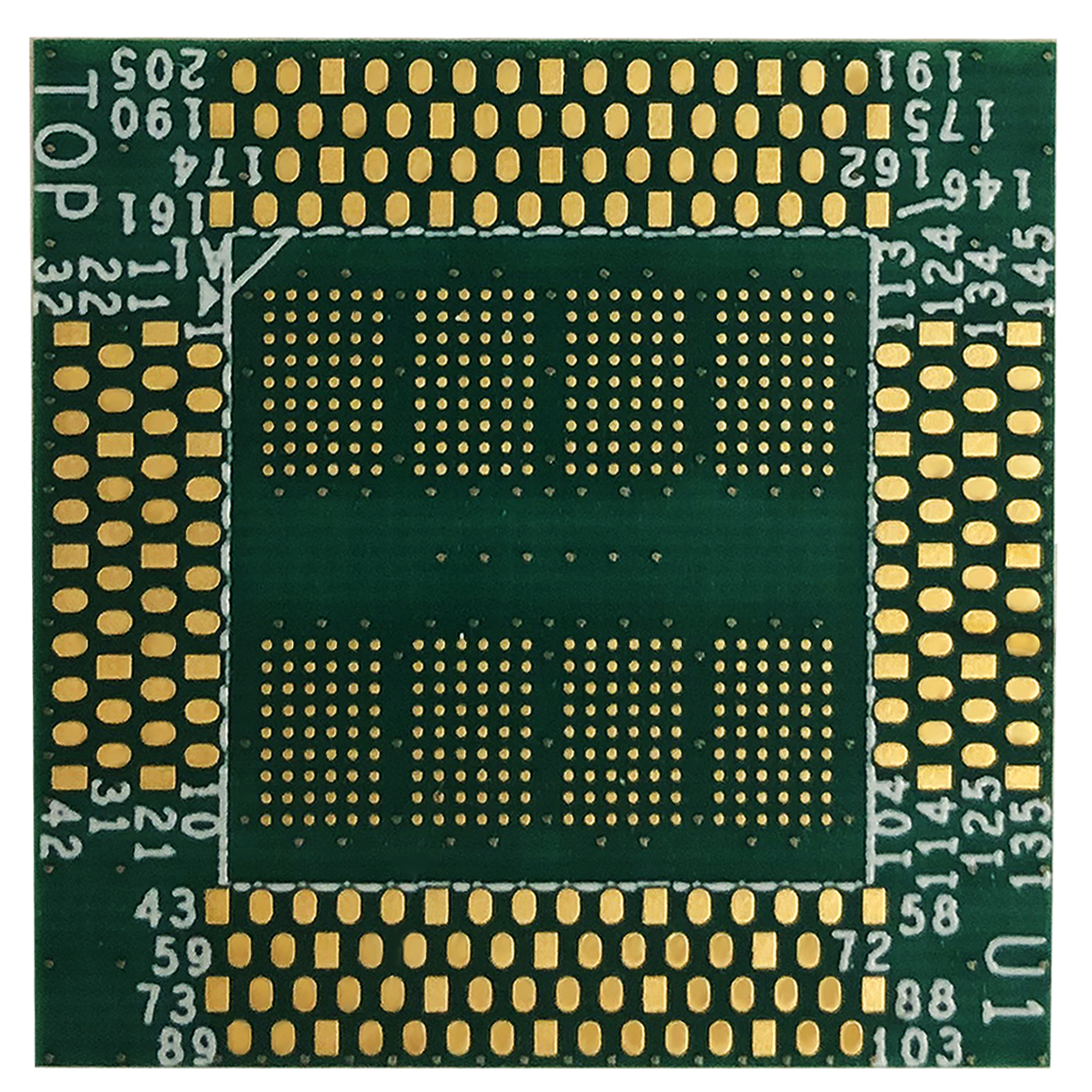

XH Series Interposers
- XH Series: New Design for Emerging and Leading-Edge Computer Memories
Software
Oscilloscope de-embedding software filters/removes interposer effects. Please contact Nexus for the appropriate de-embedding software for your interposer.
Product Configuration Table
| Nomenclature | Data Width | Interposer Type | Quantity |
|---|---|---|---|
| NEX-LP4MCI432XHSCDS | 4 x16 | Direct Attach Oscilloscope | 1 |
Available Accessories
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Riser | Riser elevates interposer .050″ | 1 | NEX-RSRLPDDR4432 |
| Solder Balls | Install solder balls on riser | 1 | NEX-OPT-SOLDERBALLS-RSR |
Attachment Service
Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.
Mechanical Outline

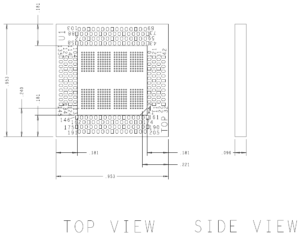

NEX-LP4MCI432XHSCDS

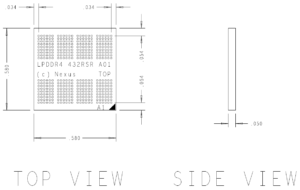

NEX-RSRLPDDR432
