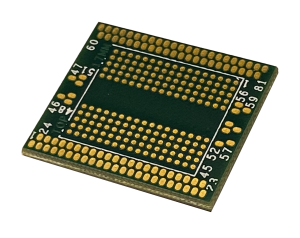

Direct Attach Interposers
Nexus Technology recommends direct attach DDR component interposers as a low cost alternate to the target socketed component interposers for oscilloscope applications. Read more…
Software
Oscilloscope de-embedding software filters/removes interposer effects. Please contact Nexus for the appropriate de-embedding software for your interposer.
Product Configuration Table
| Nomenclature | Data Width | Interposer Type | Quantity Included |
|---|---|---|---|
| NEX-GDDR5MCI170SCDS | x32 | Direct Attach | 10 |
Available Accessories
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Socket | Memory socket | 1 | NEX-SOCKETGDDR5170 |
| Solder Balls | Install solder balls on interposer | 1 | NEX-OPT-SOLDERBALLS-DA |
| Solder Balls | Install solder balls on socket | 1 | NEX-OPT-SOLDERBALLS-SK |
Attachment Service
Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.

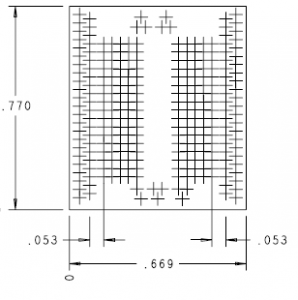

Mechanical Outline
