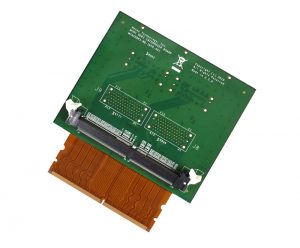

Logic Compliance Interposer
Nexus Technology recommends DDR3 slot interposers for applications where the customer must have the greatest flexibility for probing of different DDR3 MINIDIMMs. This interposer is an extender design and does not require a dedicated MINIDIMM slot. The logic analyzer connects above the standard MINIDIMM height so that there is no mechanical interference with adjacent MINIDIMMs. This is a passive interposer with no added buffers to conceal system performance.. more…
Product Configuration Table
| Nomenclature | Form Factor | Pin Count | Includes |
|---|---|---|---|
| NEX-MINIDDR3INTR | MINIDIMM | 244 | 1 – DDR3 244 pin MINIDIMM Interposer 1 – TLA Setup software package |
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Probe | Passive Probe to connect to Logic Analyzer or Memory Analyzer | 1 | NEX-PRB1XL |
| Memory Analyzer | Nexus Technology MA4100 Series Memory Analyzer | 1 | NEX-MA4100-DDR3 |
Compatible Memory Analyzers
| Product | Details |
|---|---|
 MA4100 Series Memory Analyzer |
Memory analyzer supporting DDR4 and DDR3 performance, margins and capture up to DDR4-3200 (1.6GHz) and DDR3-2667 (1.6GT/s capable) with 1G-Sample acquisition depth, ClockSafe™ and Sixteen Smart Frequency Analysis. |
