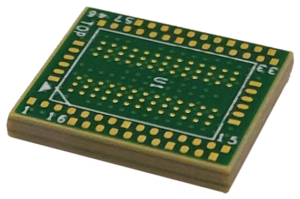

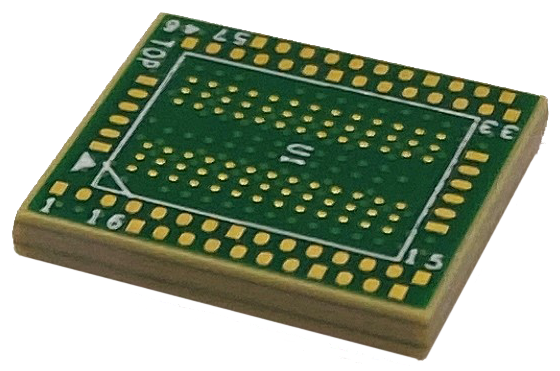

Premier Component Interposer Design
Optimal DDR4 validation requires analysis of the DDR4 signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative, contain little interference, and present the maximum possible data eye size. Nexus Technology component interposers allow for any oscilloscope to be used for probing DDR4 signals extremely close to the memory components.
XH Series Interposers
- XH Series: New Design for Emerging and Leading-Edge Computer Memories
Simulation & De-Embedding
S-Parameters are included for target simulation and the creation of de-embedding filters for use with an oscilloscope.
Can you see the difference in these oscilloscope traces?
 |
 |
| Same signals…Which one has the Nexus Interposer? Click to see if you are right |
|
Product Configuration Table
| Nomenclature | Data Width | Interposer Type | Quantity |
|---|---|---|---|
| NEX-DDR4MCI78XHSCDS | x4/x8 | Direct Attach Oscilloscope | 2 |
Available Accessories
| Type | Desc. | Quantity | Nomenclature |
|---|---|---|---|
| Riser | Riser elevates interposer .050″ | 1 | NEX-RSRDDR478 |
| Socket | Standard Memory Socket | 1 | NEX-SOCKETDDR478 |
Attachment Service
Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.

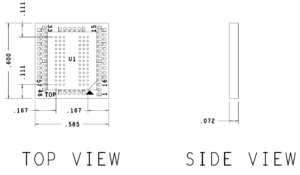

Mechanical Outline
