Interposers

Flash memory technologies are defined by the Open NAND Flash Interface (ONFI) industry workgroup and Joint Electronic Devices Engineering Council (JEDEC) for use in handheld devices or applications where low-power and small size is critical.

Nexus Technology offers high quality and high fidelity interposers, enabling the industry to confidently and accurately gain access to Flash memory buses for debug and compliance verification. … more…

Flash Interposers

	Oscilloscope			Logic Analyzer	Options
	Interposers				Options
Package	EdgeProbe™	Socketed	Direct Attach	Socketed	Riser	Component Socket

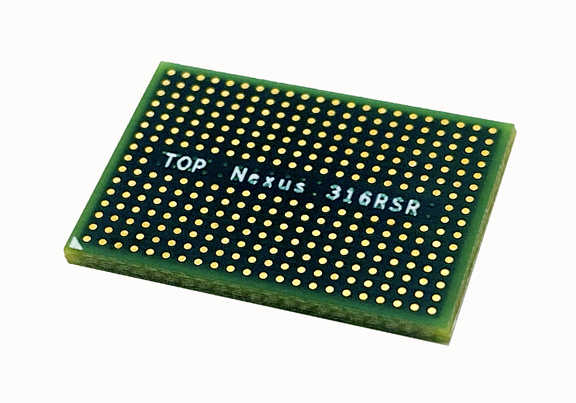

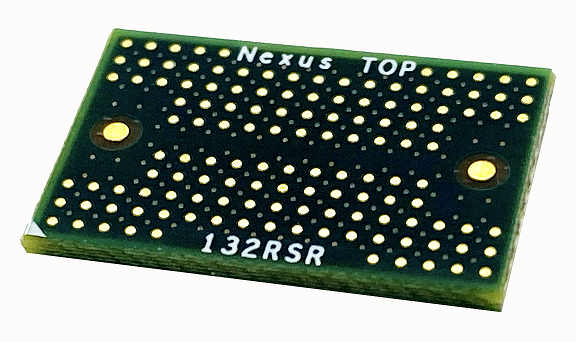

132 Ball NAND	✓	✓	*	✓	Yes	Yes

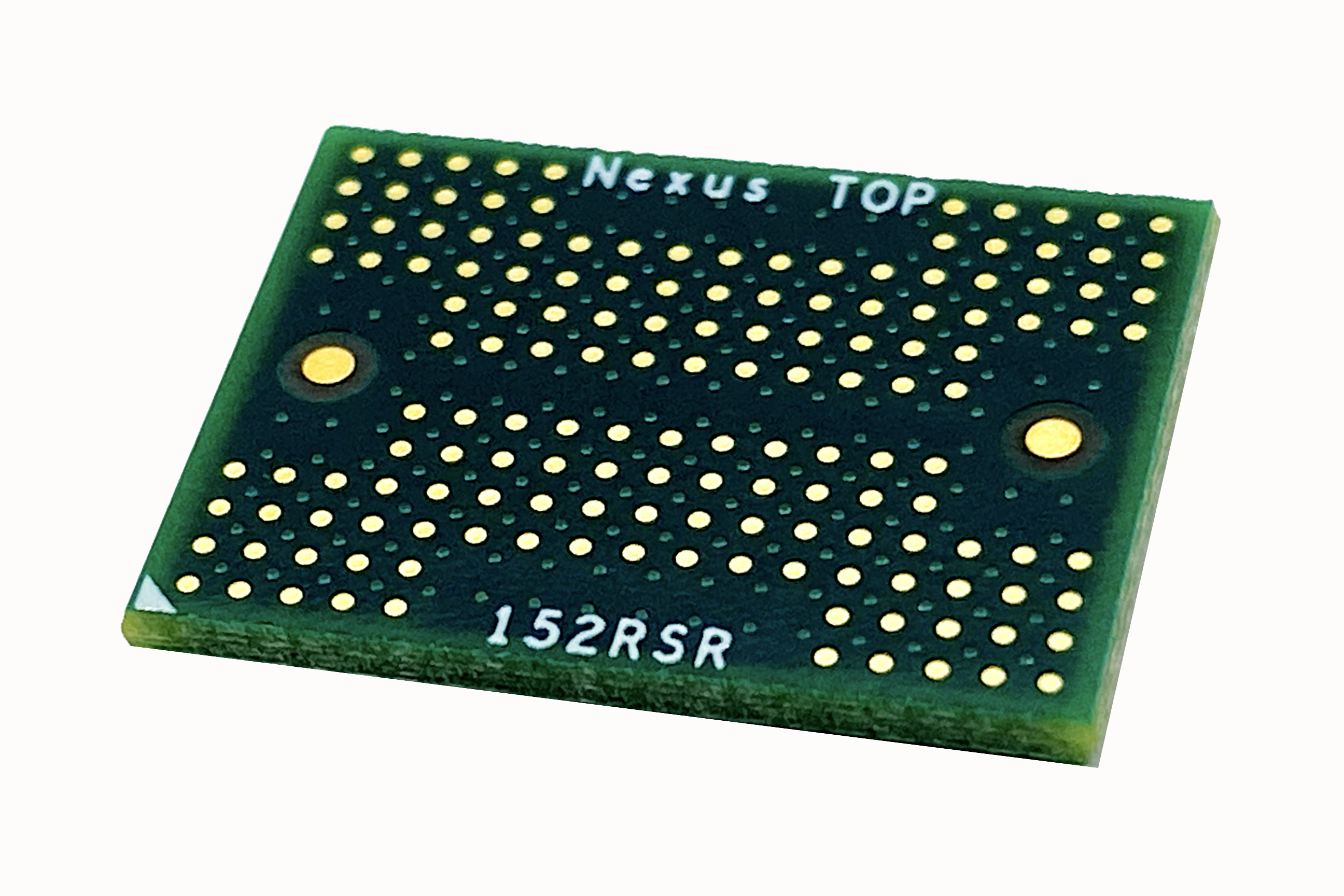

152 Ball NAND	✓	✓	*	✓	Yes	Yes

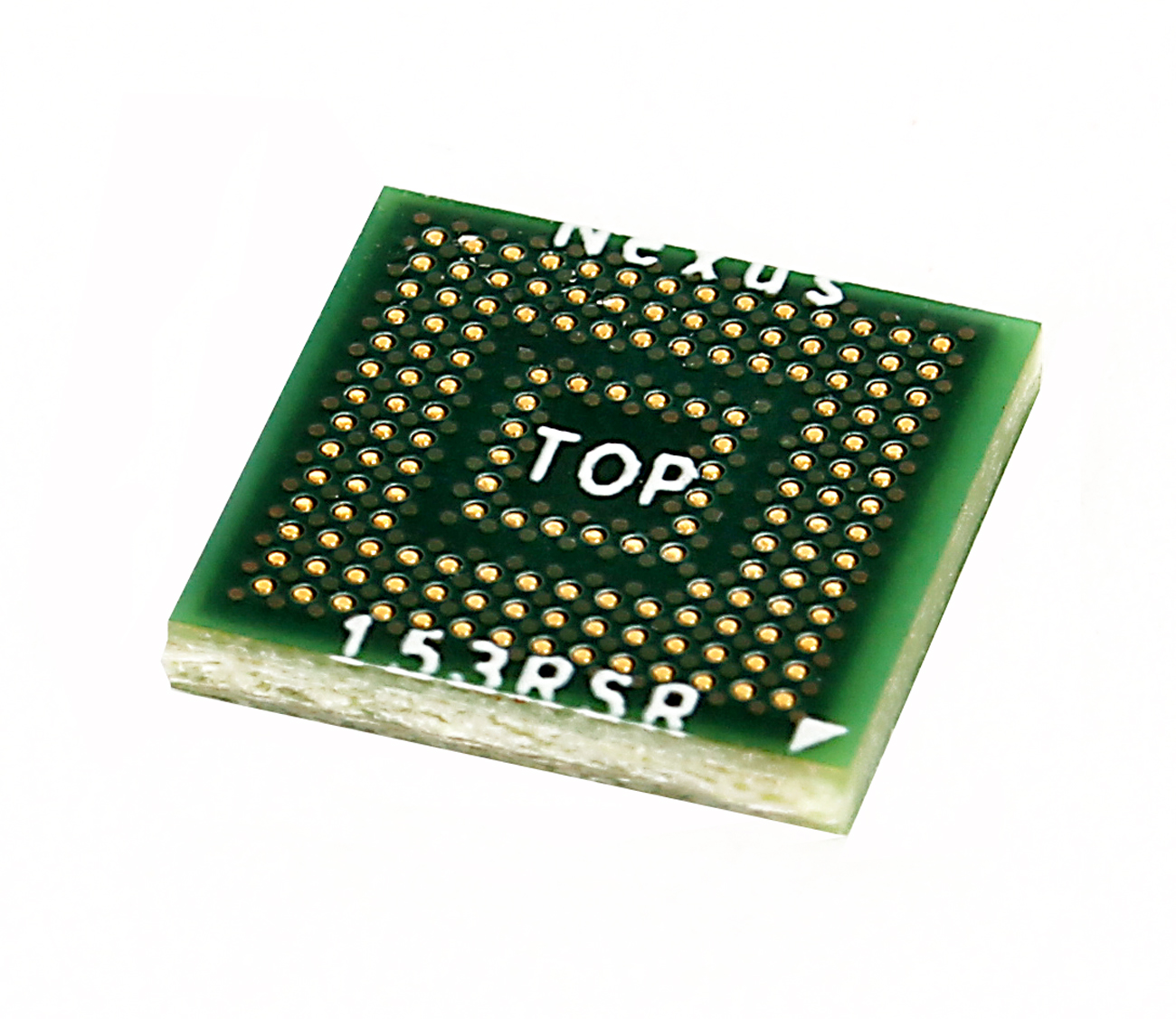

153 Ball eMMC	*	*	✓	*	Yes	No
154 Ball eMMC	*	*	✓	*	Yes	No
172 Ball NAND	*	*	*	*	Yes	No
304 Ball NAND	✓(XH)	*	✓(XH)	*	Yes	No
316 Ball Onfi	*	*	*	✓	Yes	No
Custom	Custom designs are also available. Please contact us.

*If you don’t see what you need, please contact us for the most up to date information.

Attachment Service

Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality.

More Information on Interposer Types

Electrical Analysis

Electrical analysis is enabled by using either an EdgeProbe, High Density, or Socketed interposer to capture memory activity on an oscilloscope. The oscilloscope is then used to debug, analyze, and verify the analog characteristics of your design. Presenting an accurate representation of the signals under test to the oscilloscope is critical. Nexus interposers provide an unobtrusive interconnect and accurate signal to your oscilloscope. Learn more…

Logic / Compliance Analysis

Logic analysis is performed using a logic / compliance interposer to capture memory activity on a logic or memory analyzer. The logic or memory analyzer is then used to debug, analyze, and verify the logic (basic protocol) of your design. Compliance analysis uses the same interposers to capture activity on a memory analyzer. The memory analyzer is then used to debug, analyze, margin test, performance analyze, and verify the memory protocol. Learn more…
