Low power double-data rate second-generation (LPDDR2) mobile memory technologies are developed by the Joint Electronic Devices Engineering Council (JEDEC) for use in handheld devices or applications where low-power and small size is critical.
Nexus Technology offers high quality and high fidelity interposers, enabling the industry to confidently and accurately gain access to LPDDR2 mobile memory buses for debug and compliance verification. … more…
| Interposers | Options | ||||
|---|---|---|---|---|---|
| Oscilloscope | Logic Analyzer | ||||
| Package (ChxDb) | EdgeProbe™ | Direct Attach | Logic Compliance | Riser | Component Socket |

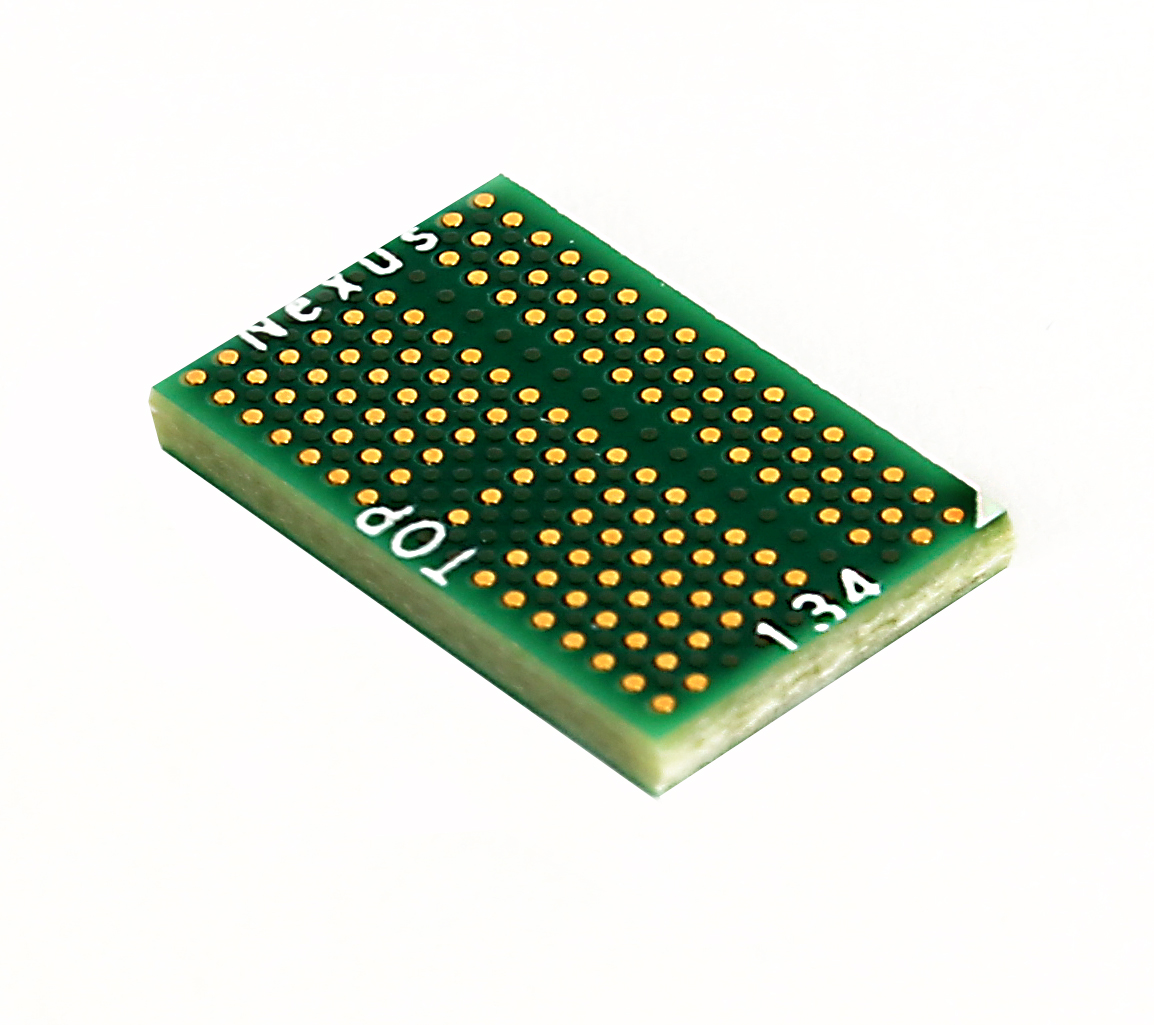

| 134 Ball (x16/x32) | * | ✓ | * | Yes | Yes |
| 136 Ball (x32) | * | ✓ | * | Yes | Yes |
| 168 Ball (x32) | * | ✓ | ✓ | Yes | Yes |
| 216 Ball (2×32) | * | ✓ | ✓ | Yes | Yes |
| 220 Ball (2×32) | * | ✓ | * | Yes | Yes |
| 240 Ball (2×32) | * | ✓ | * | Yes | Yes |
| Custom | Custom designs are also available. Please contact us. | ||||
*If you don’t see what you need, please contact us for the most up to date information.
Attachment Service
Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality.
More Information on Interposer Types
Electrical Analysis
Electrical analysis is enabled by using either a High Density, or Socketed interposer to capture memory activity on an oscilloscope. The oscilloscope is then used to debug, analyze, and verify the analog characteristics of your design. Presenting an accurate representation of the signals under test to the oscilloscope is critical. Nexus interposers provide an unobtrusive interconnect and accurate signal to your oscilloscope. Learn more…
Logic Analysis
Logic analysis is performed using a logic analyser interposer to capture memory activity on a logic analyzer. The logic analyzer is then used to debug, analyze, and verify the logic (basic protocol) of your design. Learn more…
Product List
- LPDDR2 168 Ball Logic Compliance Interposer
- LPDDR2 216 Ball Logic Compliance Interposer
- LPDDR2 134 Ball Direct Attach Oscilloscope Interposer
- LPDDR2 240 Ball Oscilloscope Socketed Interposer
- LPDDR2 216 Ball Oscilloscope Direct Attach Interposer
- LPDDR2 168 Ball Oscilloscope Socketed Interposer
- LPDDR2 136 Ball Oscilloscope Socketed Interposer
