LPDDR5 315 Ball XH Series EdgeProbe Interposers

Optimal LPDDR5 validation requires analysis of the LPDDR5 signals as seen by the memory components. This allows for the highest confidence that the signals captured are representative, contain little interference, and present the maximum possible data eye size.

XH Series EdgeProbe^TM

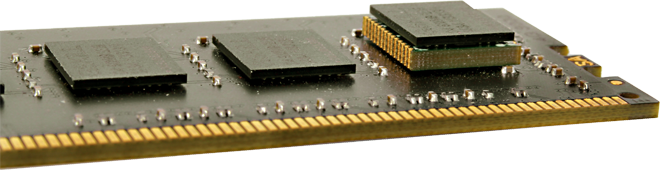

These XH Series interposers include our patented EdgeProbe^TM technology, enabling measurements of the highest LPDDR5 data rates, while allowing the interposer to be virtually the same size as the memory component.

• XH Series: New Design for Emerging and Leading-Edge Computer Memories
• EdgeProbe^TM: Interposer fits in any application

Simulation and De-Embedding

Oscilloscope de-embedding software filters/removes interposer effects. Please contact Nexus for the appropriate de-embedding software for your interposer.

Product Configuration Table

Nomenclature	Data Width	Interposer Type
NEX-LP5-A-CED-315-CHA	2 x16	Channel A
NEX-LP5-A-CED-315-CHB	2 x16	Channel B

Available Accessories

Type	Desc.	Nomenclature
Riser	Riser with solder balls added elevates interposer .050″	NEX-RSRLPDDR5315

Attachment Service

Nexus Technology’s expert attachment service provides a ready-to-go test solution customized to your application. We will attach the interposer and any additional accessories to your application’s target. We can also power-on and test your application to confirm functionality. Please contact us for more information.

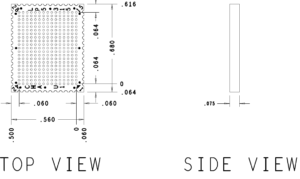

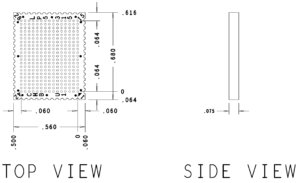

Mechanical Outlines
