Accessories primarily enable the connection between an industry standard logic analyzer footprint (D-Max, Mictor, P6860, etc) and an instrument probe. For example, a connection between a D-Max footprint and the digital channels of an MSO (Mixes Signal Oscilloscope). They can also enable the interconnect of a probe to a different industry standard footprint. Adding flying leads to a probe designed for a mictor footprint and a probe tester are also some of the accessories that are available.
| Description | Probe Connection | Product | Image | Datasheet |
|---|---|---|---|---|

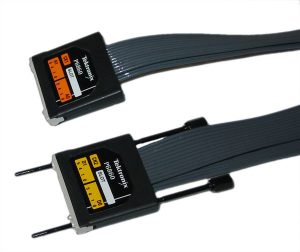

| Flying Lead Adapter (Single Ended) for P6860 Probe | P6860* | NEX-CFLSE |  |
 |
| Flying Lead Adapter (Differential) for P6860 Probe | P6880 | NEX-CFLDF |  |
|
| Dual 20 pin 0.1” header on target to MIctor interconnect | P6434/Mictor | NEX-HD20 |  |
|

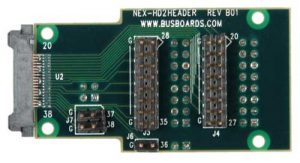

| Mictor on target to 0.1” pins for flying lead interconnect | Flying Lead | NEX-HD2HEADER |  |
|

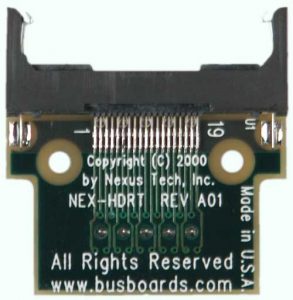

| Right angle mictor/P6434 adapter | P6434/Mictor | NEX-HDRT |  |
|

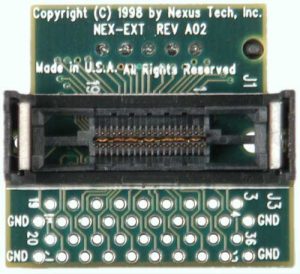

| Mictor/P6434 break out board for scope probing | P6434/Mictor | NEX-HDEXT |  |
|

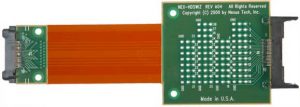

| P6434/Mictor rewiring/swizzle of signals | P6434/Mictor | NEX-HDSWIZ |  |
|

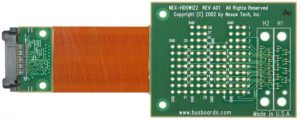

| Mictor/P6434 on target to P68xx rewiring adapter | P6434/Mictor/P68x | NEX-HDSWIZ2 |  |
|

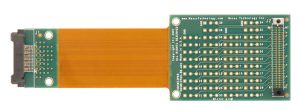

| Mictor to 6960/D-Max rewiring adapter | P6434/Mictor/P6960/D-Max | NEX-HDSWIZP69 |  |
|

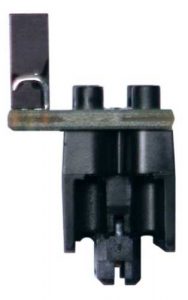

| Mictor/P6434 to P6960/D-Max adapter | P6434/Mictor/P6960/D-Max | NEX-M2P69X |  |
|

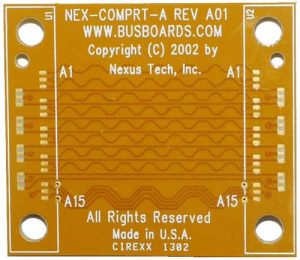

| Right angle adapter for P68xx probes | P68xx | NEX-COMPRT-A/B |  |
|

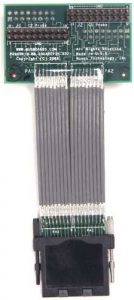

| P6960/D-Max to 0.1” header pins | P6960/Flying Lead | NEX-P6960PIN |  |
|
| P6960/D-Max to Mictor/P6434 adapter | P6960/D-Max/P6434/Mictor | NEX-P6960M |  |
|
| P6960/D-Max to P68xx adapter | P6960/D-Max/P68xx | NEX-P6960COMP |  |
|

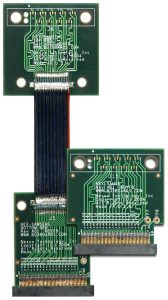

| Samtec to P68xx Single Ended adapter | Samtec/P68xx | NEX-SAMSExx |  |
|

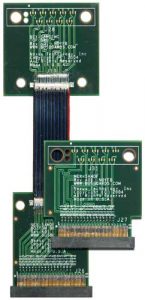

| Samtec to P68xx Differential adapter | Samtec/P68xx | NEX-SAMDFxx |  |
|

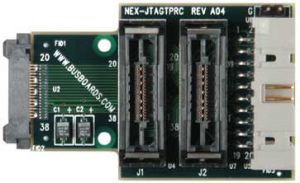

| Mictor on target to JTAG interconnect | Mictor/JTAG | NEX-JTAGTPRC |  |
|
| Back to back connection of P68xx probes | P68xx | NEX-2X-PROBE |  |
|

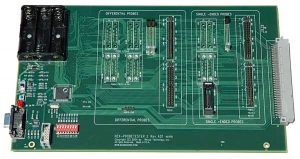

| Tektronix/Nexus Probe Tester | P64xx/P68xx/P69xx | NEX-PROBETESTER2 |  |
|
| *P6860: P6419 probes can be used in place of P6860 probes. P6419 probes are versions of the P6860 probes for the TLA7L/M/N/P or Q family of modules. Please remember that P6860 probes have two probe heads for a total of 34 channels whereas the P6419 probes have only a single probe head and, therefore, half as many channels as the P6860. | ||||
